A RDBM
schema mostly contains a collection of tables and fields as seen in Picture 3: DBGenType - a
sample RDBM Schema.

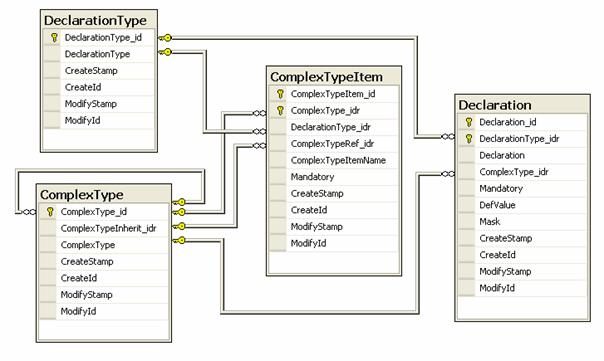

Picture 3: DBGenType - a
sample RDBM Schema
To create a
User DBTableSet named „DBGenType“ out of this schema, all you have to do is
launch the code generator in a console window with the parameters provided
in Picture
4: Code Generator usage:

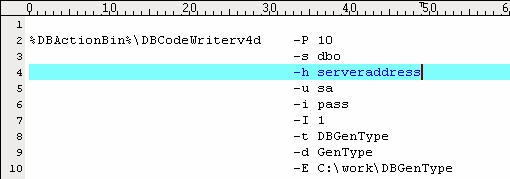

Picture 4: Code
Generator usage
This
command will connect to the MS-SQL Server (-P 10) at address serveraddress
(-h serveraddress), schema name dbo (-s dbo) and DBUserName sa
(-u sa) and generate the following files in the folder “C:\work\DBGenType”
(-E C:\work\DBGenType):
|
Class name |
Header Location DBGenType\Include |
Source Location DBGenType\Source |
Description |
|
clsDBGenType |
heaDBGenType.h |
cppDBGenType.cpp |
Table Container; Derived from
DBTableSet |
|
clsCollComplexType |
heaComplexType.h |
cppComplexType.cpp |
Collection of
ComplexType Items |
|
clsComplexType |
heaComplexType.h |
cppComplexType.cpp |
ComplexType
Properties; Column Properties |
|
clsCollDeclarationType |
heaDeclarationType.h |
cppDeclarationType.cpp |
Collection of
DeclarationType Items |
|
clsDeclarationType |
heaDeclarationType.h |
cppDeclarationType.cpp |
DeclarationType
Properties; Column Properties |
|
clsCollComplexTypeItem |
heaComplexTypeItem.h |
cppComplexTypeItem.cpp |
Collection of
ComplexTypeItem Items |
|
clsComplexTypeItem |
heaComplexTypeItem.h |
cppComplexTypeItem.cpp |
ComplexTypeItem
Properties; Column Properties |
|
clsCollDeclaration |
heaDeclaration.h |
cppDeclaration.cpp |
Collection of
Declaration Items |
|
clsDeclaration |
heaDeclaration.h |
cppDeclaration.cpp |
Declaration
Properties; Column Properties |
The clsDBGenType class manages all the tables. In
order to perform any action, an instance of this class must be created. This
can be achieved using the following static method:
static clsDBGenType::Open (..,..,clsDBGenType** v_ppobjDBGenType, ..,
..);
The DBTableSet
(in our case DBGenType) manages all actions like Select(), Update(), Insert(),
Delete(), Cache() and Save().
